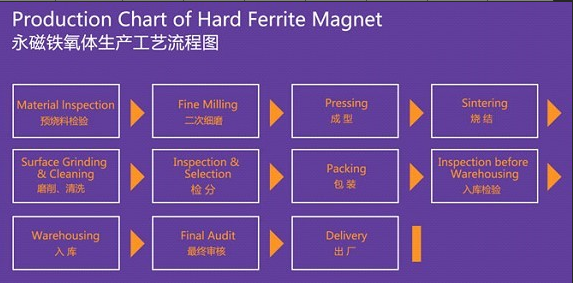

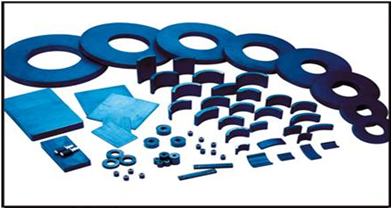

| Ferrite Magnet is made of SrO or BaO and Fe2O3 by ceramic processing technology. |
| Because of the cheap raw material, simple process ,it is cheaper than other kind of magnet. |
| The main raw material is oxide, so it is not easy to corrosion . |
| Characteristics： |
| Using the method of powder metallurgy production, low Relative Recoil Permeability, small magnetic permeability recovery. |
| The coercive force is larger, and the magnetic circuit structure of the magnetic circuit is suitable for the dynamic working condition. |
| Hard and brittle material, can be used for diamond tools for cutting. The main raw material is oxide, it is not easy to corrosion . |
| Permanent ferrite magnet standard | ||||||||
| 牌号（Grade） | Br | Hcb | (BH) max | |||||
| Wb/m2 | Gs | KA/m | Oe | KJ/m3 | MGOe | |||
| Y10T | ≥0.20 | ≥2000 | 128-160 | 1600-2000 | 6.4-9.6 | 0.8-1.2 | ||
| Y15 | 0.28-0.36 | 2800-3600 | 128-192 | 1600-2400 | 14.3-17.5 | 1.8-2.2 | ||
| Y20 | 0.32-0.38 | 3200-3800 | 128-192 | 1600-2400 | 18.3-21.5 | 2.3-2.7 | ||
| Y25 | 0.35-0.39 | 3500-3900 | 152-208 | 1900-2600 | 22.3-25.5 | 2.8-3.2 | ||
| Y30 | 0.38-0.42 | 3800-4200 | 160-216 | 2000-2700 | 26.3-29.5 | 3.3-3.7 | ||
| Y35 | 0.40-0.44 | 4000-4400 | 176-224 | 2200-2800 | 30.3-33.4 | 3.8-4.2 | ||
| Y15H | ≥0.31 | ≥3100 | 232-248 | 2900-3100 | ≥17.5 | ≥2.2 | ||
| Y20H | ≥0.34 | ≥3400 | 248-264 | 3100-3300 | ≥21.5 | ≥2.7 | ||
| Y25BH | 0.36-0.39 | 3600-3900 | 176-216 | 2200-2700 | 23.9-27.1 | 3.0-3.4 | ||
| Y30BH | 0.38-0.40 | 3800-4000 | 224-240 | 2800-3000 | 27.1-30.3 | 3.4-3.8 | ||
| Permanent ferrite magnet standard | ||||||||
| Grade | Br | Hcb | Hcj | (BH) max | ||||
| MT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
| Y8T | 200-235 | ≥2000 | 125-160 | ≥1570 | 210-280 | ≥2610 | 6.5-9.5 | ≥0.8 |
| Y22H | 310-360 | ≥3100 | 220-250 | ≥2770 | 280-320 | ≥3520 | 20.0-24.0 | ≥2.5 |
| Y25 | 360-400 | ≥3600 | 135-170 | ≥1700 | 140-200 | ≥1760 | 22.5-28.0 | ≥2.8 |
| Y26H-1 | 360-390 | ≥3600 | 200-250 | ≥2512 | 225-255 | ≥2830 | 23.0-28.0 | ≥2.9 |
| Y26H-2 | 360-380 | ≥3600 | 263-288 | ≥3300 | 318-350 | ≥4000 | 24.0-28.0 | ≥3.0 |
| Y27H | 350-380 | ≥3500 | 225-240 | ≥2830 | 235-260 | ≥2950 | 25.0-29.0 | ≥3.1 |
| Y28 | 370-400 | ≥3700 | 175-210 | ≥2200 | 180-220 | ≥2260 | 26.0-30.0 | ≥3.3 |
| Y28H-1 | 380-400 | ≥3800 | 240-260 | ≥3020 | 250-280 | ≥3140 | 27.0-30.0 | ≥3.1 |
| Y28H-2 | 360-380 | ≥3600 | 271-295 | ≥3400 | 382-405 | ≥1800 | 26.0-30.0 | ≥3.3 |
| Y30H-1 | 380-400 | ≥3800 | 230-275 | ≥2890 | 235-290 | ≥2950 | 27.0-32.5 | ≥3.4 |
| Y30H-2 | 395-415 | ≥3950 | 275-300 | ≥3460 | 310-335 | ≥3900 | 27.0-32.0 | ≥3.4 |
| Y32 | 400-420 | ≥4000 | 160-190 | ≥2010 | 165-195 | ≥2070 | 30.0-33.5 | ≥3.8 |
| Y32H-1 | 400-420 | ≥4000 | 190-230 | ≥2390 | 230-250 | ≥2890 | 34.5-35.0 | ≥4.0 |
| Y32H-2 | 400-440 | ≥4000 | 224-240 | ≥2810 | 230-250 | ≥2890 | 31.0-34.0 | ≥3.9 |
| Y33 | 410-430 | ≥4100 | 220-250 | ≥2760 | 225-255 | ≥2830 | 31.5-35.5 | ≥4.0 |
| Y33H | 410-430 | ≥4100 | 250-270 | ≥3140 | 250-275 | ≥3140 | 31.5-35.5 | ≥4.0 |
| Y34 | 420-440 | ≥4200 | 200-230 | ≥2510 | 205-235 | ≥2580 | 32.5-36.0 | ≥4.1 |
| Y35 | 430-450 | ≥4300 | 215-239 | ≥2700 | 217-241 | ≥2730 | 33.1-33.2 | ≥4.2 |
| Y36 | 440-450 | ≥4400 | 247-271 | ≥3100 | 250-374 | ≥4400 | 35.1-38.3 | ≥4.4 |
| Y38 | 440-460 | ≥4400 | 285-305 | ≥3580 | 294-310 | ≥3690 | 36.6-40.6 | ≥4.6 |
| Y40 | 450-460 | ≥4500 | 330-354 | ≥4150 | 340-360 | ≥1270 | 37.6-41.8 | ≥4.7 |
| 项目 （Item) | 单位（Unit) | 参数范围 （Parameter Range) |
| 居里温度 (Curie Temperature) | ℃ | 450 |
| 最高工作温度 （Maximum operating temperature) | ℃ | 250 |
| 硬度 (Vickers Hardness) | HV | 480-580 |
| 密度 (Density) | g/cm3 | 4.8-4.9 |
| 剩磁温度系数 (Temperature coefficient of Br) | %/℃ | -0.2 |
| 内禀矫顽力温度系数 (Temperature coefficient of iHc) | %/℃ | 0.3 |
